Liquid Glass in a Compose Multiplatform app

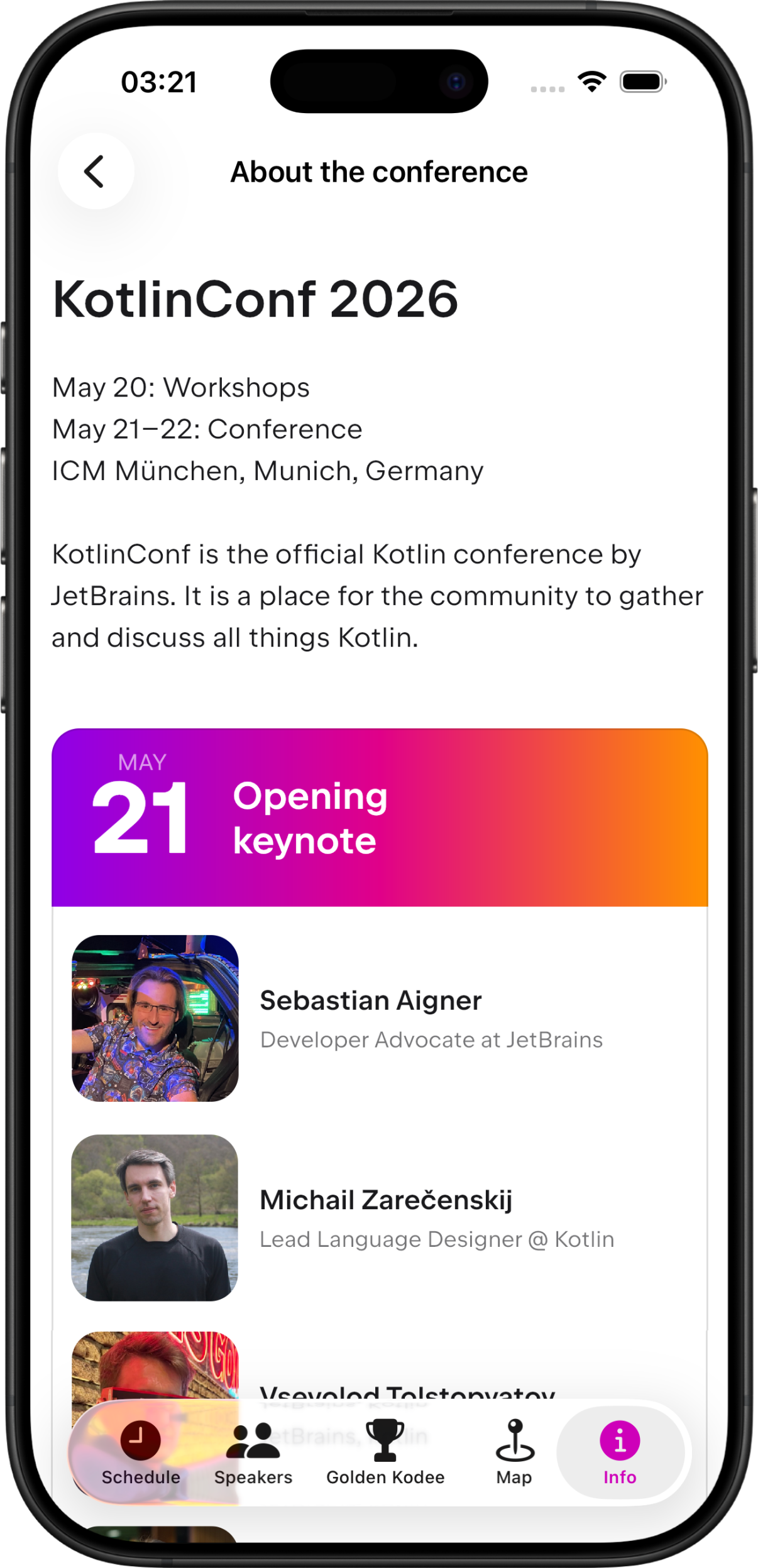

Liquid Glass is Apple's visual design system introduced in iOS 26, bringing glass-like translucency and fluidity to UI elements. To adopt it in a Compose Multiplatform app, you need a native SwiftUI shell, because Liquid Glass effects are rendered by the system through native TabView, NavigationStack, and toolbar APIs.

This tutorial walks you through migrating an iOS app from fully Compose-driven navigation to native SwiftUI navigation with iOS 26 Liquid Glass styling, while keeping Compose in charge of rendering each screen's content. The system applies Liquid Glass effects automatically when the app uses native TabView and NavigationStack views, so you don't need to write any Liquid Glass-specific code.

We'll use the official KotlinConf app as our example.

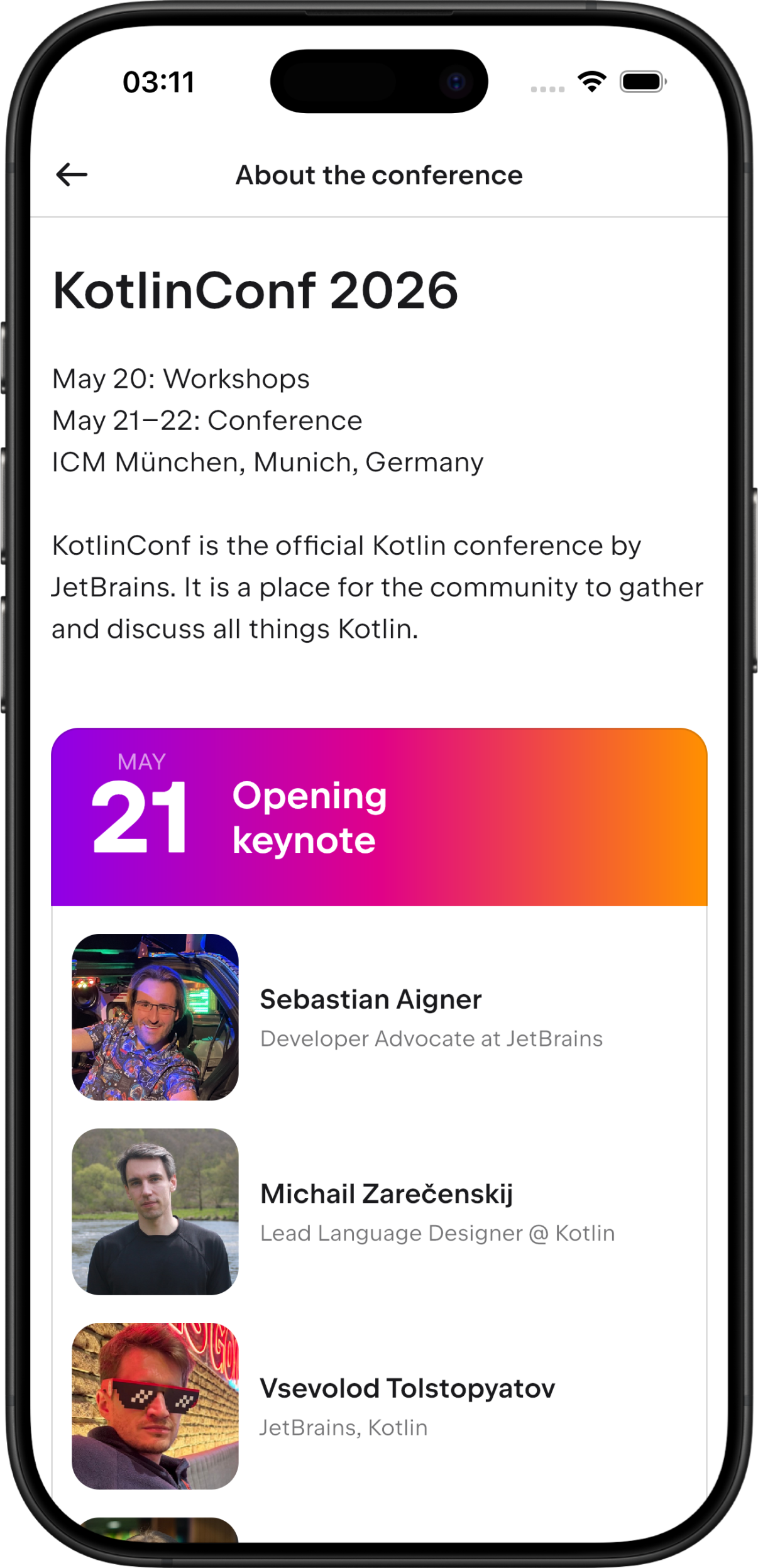

main branch — starting state, with a custom theme fully implemented in Compose.
lg-nav branch — final state, with the Liquid Glass design.

Clone the repo and check out either branch to follow along, or compare them side by side: main...lg-nav.

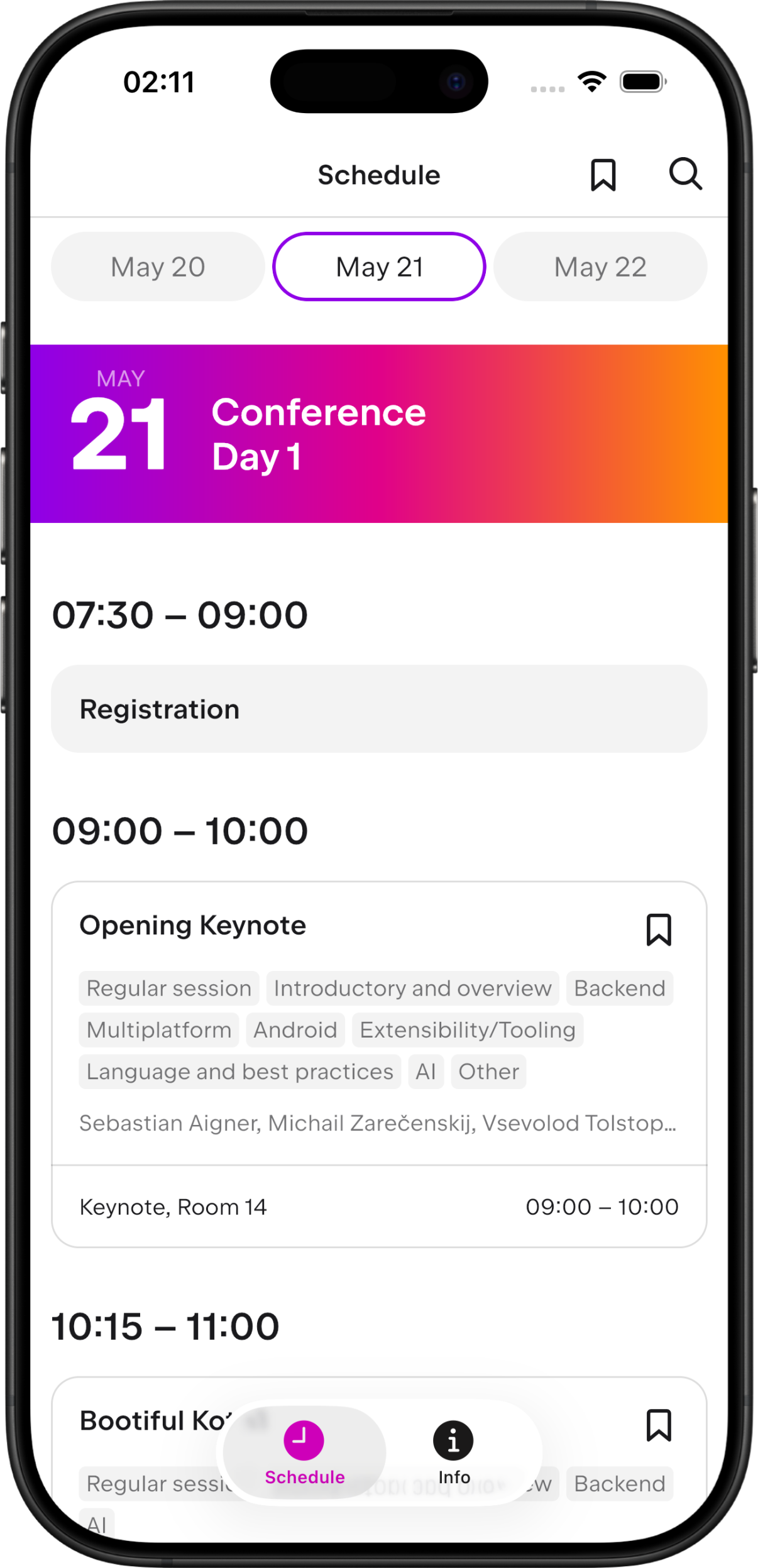

For simplicity, we'll migrate a two-tab version of the app (Schedule and Info), but the same pattern scales to any number of tabs.

Migration plan

In a Compose Multiplatform setup with fully shared UI code, a single ComposeUIViewController is responsible for the entire iOS UI: tabs, navigation stack, back gestures, and screen content. Compose Multiplatform's navigation transitions on iOS are designed to feel native, but some platform-level features, such as iOS 26's Liquid Glass tab bar styling, are only available through native iOS components.

The solution is to hand navigation over to SwiftUI, letting the system render the tab bar and navigation stack natively while Compose continues to render each screen's content.

Before:

ContentView
  └── ComposeView (Compose Multiplatform)

After:

ContentView
  └── TabView  (Liquid Glass, iOS 26)
        ├── Tab: Schedule
        │     └── NavigationStack
        │           ├── NativeNavComposeView  ← Compose tab root
        │           └── DetailComposeView     ← Compose detail screen, one per destination
        └── Tab: Info
              └── NavigationStack
                    ├── NativeNavComposeView  ← Compose tab root
                    └── DetailComposeView     ← Compose detail screen, one per destination

Here's how navigation flows in the new setup:

SwiftUI creates a TabView containing a NavigationStack for each tab.
Compose still renders each screen's content but no longer manages the back stack.
When the user triggers navigation from a Compose screen (for example, taps a list row), the event is forwarded to Swift via onNavigate.
The Swift coordinator pushes the route into its NavigationStack, which creates a new UIViewController hosting a single Compose screen.

The migration touches both the shared Compose Multiplatform code and the native iOS code. In the shared Kotlin code:

Add title metadata to routes so SwiftUI can render navigation bar titles and back stack entries without calling back into Kotlin.
Add navigation callbacks to the iOS entry point so the iOS layer can control which tab is active and respond to navigation events.
Intercept navigation at the Compose level so detail routes are forwarded to Swift instead of being handled by Compose. This tutorial shows the Navigation 3 implementation — adapt this step if you use a different navigation library.
Build a standalone screen renderer for iOS so SwiftUI can render any detail route on its own outside the full App().
Hide Compose's built-in navigation UI when SwiftUI is in charge so users don't see duplicate title bars and back buttons.
Expose new iOS entry points for creating the root view controller and individual screen view controllers.

In the native iOS code (Swift):

Build the SwiftUI navigation layer with native TabView and NavigationStack views, and the bridges that embed Compose screens.

Add title metadata to routes

On iOS, each destination has a title that appears in the navigation bar, as well as in the back stack revealed by long-pressing the back button. We'll store titles directly on the route objects, so each route is self-describing and Swift can read the title without round-trips to Kotlin.

In the navigation/Routes.kt file, add title and subtitle properties to AppRoute:
@Serializable sealed interface AppRoute { val title: String? get() = null val subtitle: String? get() = null }
Override title (and subtitle where useful) on routes that appear as detail screens. For routes that already carry data, add it as an optional parameter:
@Serializable data class SessionScreen( val sessionId: SessionId, override val title: String? = null, ) : AppRoute
Routes that were data object also need a title, but a data object can't carry per-instance title state. Convert them to data class:
data object SettingsScreen : AppRoute
data class SettingsScreen(override val title: String = "") : AppRoute
For the full set of updated route definitions, see Routes.kt.
Pass the localized title at the call site in the NavHost.kt file. Since stringResource is a @Composable function, resolve it inside the entry scope and capture it in the click callback, not inside the callback itself:
entry<InfoScreen> { val settingsTitle = stringResource(Res.string.settings_title) InfoScreen( onSettings = { navigator.add(SettingsScreen(settingsTitle)) }, // ... ) }

App() is the Kotlin entry point that iOS calls into. To let Swift drive navigation, it needs a way to do three things:

Choose the starting tab when the app launches via a new topLevelRoute parameter.
React to navigation pushes from Compose (for example, when a list item is tapped) via an onNavigate callback.
React to tab switches initiated from Compose via an onActivate callback.

The new callbacks are optional and default to null, so Android, desktop, and web targets are unaffected.

In the App.kt file, update the signature of App() accordingly:

@Composable
fun App(
    appGraph: AppGraph,
    topLevelRoute: TopLevelRoute,
    onThemeChange: ((isDarkTheme: Boolean) -> Unit)? = null,
    onNavigate: ((AppRoute) -> Unit)? = null,
    onActivate: ((TopLevelRoute) -> Unit)? = null,
) {
    // ...
    val startRoute: AppRoute = remember {
        if (isOnboardingComplete) topLevelRoute else StartPrivacyNoticeScreen
    }
    NavHost(startRoute, isDarkTheme, onThemeChange, onNavigate, onActivate)
}

For the full implementation, see App.kt.

Now that App() exposes navigation callbacks, NavHost needs to use them. Whenever a detail route appears on Compose's back stack, hand it off to Swift and immediately remove it from Compose. This way, Compose renders detail screens only when invoked from Swift.

Two flows need to be set up:

Detail pushes → Swift. Whenever a non-root route lands on the back stack, forward it through onNavigate and remove it from Compose's back stack so SwiftUI's NavigationStack becomes the single source of truth.
Tab switches → Swift. When the top-level route changes from inside Compose, notify Swift via onActivate so the SwiftUI TabView selection stays in sync.

This step is specific to the Navigation 3 library. The same interception pattern applies to any Compose navigation library, but the exact API (back stack access, current destination observation) will differ.

In navigation/NavHost.kt, add the new parameters and the two interception effects to the NavHost() function:

import androidx.compose.runtime.snapshotFlow

@Composable
internal fun NavHost(
    startRoute: AppRoute,
    isDarkTheme: Boolean,
    onThemeChange: ((Boolean) -> Unit)?,
    onNavigate: ((AppRoute) -> Unit)? = null,
    onActivate: ((TopLevelRoute) -> Unit)? = null,
) {
    // Forwards detail routes to Swift and removes them from Compose's stack
    if (onNavigate != null) {
        LaunchedEffect(navState) {
            snapshotFlow { navState.currentBackstack.toList() }.collect { backstack ->
                val detailRoutes = backstack.drop(1)
                if (detailRoutes.isNotEmpty()) {
                    detailRoutes.forEach { onNavigate(it) }
                    navState.currentBackstack.removeRange(1, navState.currentBackstack.size)
                }
            }
        }
    }
    // Notifies Swift when the user switches tabs from within Compose
    if (onActivate != null) {
        LaunchedEffect(navState) {
            snapshotFlow { navState.topLevelRoute }.collect { route ->
                if (route != null) onActivate(route)
            }
        }
    }
    // ...
}

For the full file, see NavHost.kt.

Build a standalone screen renderer for iOS

When SwiftUI owns the NavigationStack, Compose only needs to render the content of each screen. NavHost is built for managing a back stack, transitions, and lifecycle, so we need a simpler entry point for rendering a single route.

Add a flat screen renderer

ScreenContent is that simpler entry point: a flat when expression that maps a single detail route to its composable, with no navigation state of its own. Tab roots are still handled by the full App()/NavHost. SwiftUI creates a separate view controller for each destination, each hosting a single ScreenContent call.

Add the following to navigation/NavHost.kt:

@Composable
fun ScreenContent(
    route: AppRoute,
    onNavigate: (AppRoute) -> Unit,
    onBack: () -> Unit,
    onSet: (AppRoute) -> Unit,
    onActivate: (TopLevelRoute) -> Unit,
) {
    val uriHandler = LocalUriHandler.current
    when (route) {
        is SessionScreen -> SessionScreen(
            sessionId = route.sessionId,
            onBack = onBack,
            onSpeaker = { speakerId -> onNavigate(SpeakerDetailScreen(speakerId)) },
            // ...
        )
        is SpeakerDetailScreen -> SpeakerDetailScreen(
            speakerId = route.speakerId,
            onBack = onBack,
            onSession = { sessionId -> onNavigate(SessionScreen(sessionId)) },
        )
        is SettingsScreen -> SettingsScreen(onBack = onBack)
        is AboutAppScreen -> AboutAppScreen(
            onBack = onBack,
            onLicenses = { onNavigate(LicensesScreen) },
            // ...
        )
        // All other detail routes
        else -> {}
    }
}

Titles don't appear in this function: they were attached to the route objects back in the Add title metadata to routes step, so the Swift side can read them directly from each route when configuring its navigation bar.

ScreenContent runs in a context where SwiftUI renders the navigation bar and back button. Compose screens that draw their own title bars or back buttons must skip them.

To avoid duplication inside the composition tree, use a CompositionLocal that each screen can read without depending on iOS-specific code.

Declare LocalUseNativeNavigation as a CompositionLocal in the NavHost.kt file, before the NavHost() function:

val LocalUseNativeNavigation = staticCompositionLocalOf { false }

Wrap the renderer for iOS

ScreenContent renders a route, but it needs a wrapper that sets the same theme, dependency injection, and app-wide CompositionLocal values that App() usually sets up.

Add the SingleScreenApp wrapper. It mirrors the setup from App() and additionally sets LocalUseNativeNavigation to true, so each screen automatically hides its Compose-rendered title bar and back button.

In the iosMain source set, create the SingleScreenApp.kt file:

@Composable
internal fun SingleScreenApp(
    appGraph: AppGraph,
    route: AppRoute,
    onNavigate: (AppRoute) -> Unit,
    onGoBack: () -> Unit,
    onSet: (AppRoute) -> Unit,
    onActivate: (TopLevelRoute) -> Unit,
) {
    // Sets theme and flags
    CompositionLocalProvider(
        LocalUseNativeNavigation provides true,
        LocalFlags provides flags,
        LocalAppGraph provides appGraph,
        // Other providers
    ) {
        KotlinConfTheme(colors = colors) {
            Box(Modifier.fillMaxSize().background(KotlinConfTheme.colors.mainBackground)) {
                ScreenContent(route, onNavigate, onGoBack, onSet, onActivate)
            }
        }
    }
}

Apply the flag to tab roots

Tab roots still go through the regular NavHost, so they also need to honor the LocalUseNativeNavigation value. Provide it based on whether native navigation callbacks are active. When they are active, render the navigation content directly and skip NavScaffold (the Compose bottom bar):

val useNativeNavigation = onNavigate != null

CompositionLocalProvider(LocalUseNativeNavigation provides useNativeNavigation) {
    Box(
        // ...
    ) {
        val content = @Composable {
            NavDisplay(
                entries = navState.toDecoratedEntries(entryProvider),
                onBack = navigator::goBack,
            )
        }
        if (useNativeNavigation) {
            content()
        } else {
            NavScaffold(
                navState = navState,
                navigator = navigator,
                showGoldenKodee = showGoldenKodee,
                content = content,
            )
        }
    }
}

For full implementations, see NavHost.kt and SingleScreenApp.kt.

With LocalUseNativeNavigation set wherever SwiftUI renders the navigation UI, individual screens now need to read it and hide their own title bars and back buttons. Otherwise, the user would see two title bars stacked on top of each other and two competing back buttons.

In BaseScreens.kt, update the ScreenWithTitle() function to read LocalUseNativeNavigation and skip the title bar and its divider when it is true:

val useNativeNavigation = LocalUseNativeNavigation.current

if (!useNativeNavigation) {
    MainHeaderTitleBar(...)
    HorizontalDivider(...)
}

Apply the same pattern to any other screens that draw their own back buttons or headers.

For the full implementation, see BaseScreens.kt.

Expose new iOS entry points

To build the new navigation structure from SwiftUI, expose three Kotlin entry points: two overloads of MainViewController and one ScreenViewController. In iosMain/main.ios.kt, add the three functions:

MainViewController without callbacks, used as a pre-iOS 26 fallback. Liquid Glass APIs require iOS 26, so SwiftUI should fall back to the original full-Compose setup on older versions. Without this overload, the #available branch in Swift won't compile.
// Pre-iOS 26 fallback: full Compose navigation, no native callbacks @Suppress("unused") fun MainViewController(topLevelRoute: TopLevelRoute): UIViewController = ComposeUIViewController( configure = { onFocusBehavior = OnFocusBehavior.DoNothing }, ) { App(appGraph, topLevelRoute) }
MainViewController with callbacks, called by SwiftUI for each tab root. Compose runs the full App() and NavHost, but navigation events are forwarded to SwiftUI instead of being handled internally. The signature includes onGoBack and onSet for API symmetry with ScreenViewController, although they aren't used in this overload.
// Tab root: Compose runs NavHost but hands navigation events to SwiftUI @Suppress("unused") fun MainViewController( topLevelRoute: TopLevelRoute, onNavigate: (AppRoute) -> Unit, onGoBack: () -> Unit, onSet: (AppRoute) -> Unit, onActivate: (TopLevelRoute) -> Unit, ): UIViewController = ComposeUIViewController( configure = { onFocusBehavior = OnFocusBehavior.DoNothing } ) { App(appGraph, topLevelRoute, onNavigate = onNavigate, onActivate = onActivate) }
ScreenViewController, called by SwiftUI for each detail screen. Renders a single route via SingleScreenApp, which sets LocalUseNativeNavigation to true so Compose's built-in title bars and back buttons are hidden.
// Detail screen: renders a single screen with LocalUseNativeNavigation = true @Suppress("unused") fun ScreenViewController( route: AppRoute, onNavigate: (AppRoute) -> Unit, onGoBack: () -> Unit, onSet: (AppRoute) -> Unit, onActivate: (TopLevelRoute) -> Unit, ): UIViewController = ComposeUIViewController( configure = { onFocusBehavior = OnFocusBehavior.DoNothing } ) { SingleScreenApp(appGraph, route, onNavigate, onGoBack, onSet, onActivate) }

For the full implementation, see main.ios.kt.

This is the iOS side of the migration. All the Kotlin changes from the previous steps prepare the app for what happens here: a SwiftUI TabView with per-tab NavigationStacks that host Compose views as their destinations. To build that, complete the following:

Make Kotlin routes usable in NavigationStack
Track tab and navigation state
Embed Compose screens as SwiftUI views
Set up navigation within each tab
Build the tab bar
Fall back on older iOS versions

Note that none of the code in this section applies Liquid Glass effects directly. iOS 26 renders Liquid Glass automatically for native TabView and NavigationStack views, so using them is enough to enable it.

Make Kotlin routes usable in `NavigationStack`

NavigationStack requires its path elements to be Hashable and Identifiable. To satisfy this for a Kotlin sealed interface, wrap AppRoute in a Swift struct. Add the following to the ContentView.swift file:

@available(iOS 26.0, *)
struct RouteWrapper: Hashable, Identifiable {
    let id = UUID()
    let route: AppRoute

    static func ==(lhs: RouteWrapper, rhs: RouteWrapper) -> Bool {
        lhs.id == rhs.id
    }

    func hash(into hasher: inout Hasher) {
        hasher.combine(id)
    }
}

Pushing the same route twice must create two distinct stack entries, matching the expected navigation behavior. To achieve this, identity is based on a UUID rather than the route's value.

Each tab has its own navigation stack, and the app tracks which tab is currently selected. Add two @Observable classes to handle this:

@available(iOS 26.0, *) @Observable class TabNavigationCoordinator { var path: [RouteWrapper] = [] func push(_ route: AppRoute) { path.append(RouteWrapper(route: route)) } func pop() { if !path.isEmpty { path.removeLast() } } func popToRoot() { path.removeAll() } }

@available(iOS 26.0, *) @Observable class AppNavigationCoordinator { enum AppTab { case schedule, info } var selectedTab: AppTab = .schedule let scheduleCoordinator = TabNavigationCoordinator() let infoCoordinator = TabNavigationCoordinator() func activateTab(for route: TopLevelRoute) { if route is ScheduleScreen { selectedTab = .schedule } else if route is InfoScreen { selectedTab = .info } } }

AppNavigationCoordinator is simplified for the two-tab version used in this tutorial. See ContentView.swift for the full version.

Embed Compose screens as SwiftUI views

Two UIViewControllerRepresentable types connect the Kotlin entry points from the Expose new iOS entry points step to SwiftUI: one for tab roots, one for detail screens.

NativeNavComposeView hosts a tab root (Compose's NavHost) and forwards its navigation events:

@available(iOS 26.0, *)
struct NativeNavComposeView: UIViewControllerRepresentable {
    let topLevelRoute: TopLevelRoute
    let coordinator: TabNavigationCoordinator
    let appCoordinator: AppNavigationCoordinator

    func makeUIViewController(context: Context) -> UIViewController {
        return Main_iosKt.MainViewController(
            topLevelRoute: topLevelRoute,
            onNavigate: { route in self.coordinator.push(route) },
            onGoBack: { self.coordinator.pop() },
            onSet: { route in
                self.coordinator.popToRoot()
                if let topLevel = route as? TopLevelRoute {
                    self.appCoordinator.activateTab(for: topLevel)
                } else {
                    self.coordinator.push(route)
                }
            },
            onActivate: { route in self.appCoordinator.activateTab(for: route) }
        )
    }

    func updateUIViewController(_ uiViewController: UIViewController, context: Context) {
    }
}

DetailComposeView hosts a single detail screen, one instance for each NavigationStack destination:

@available(iOS 26.0, *)
struct DetailComposeView: UIViewControllerRepresentable {
    let route: AppRoute
    let coordinator: TabNavigationCoordinator
    let appCoordinator: AppNavigationCoordinator

    func makeUIViewController(context: Context) -> UIViewController {
        return Main_iosKt.ScreenViewController(
            route: route,
            onNavigate: { newRoute in self.coordinator.push(newRoute) },
            onGoBack: { self.coordinator.pop() },
            onSet: { route in
                self.coordinator.popToRoot()
                if let topLevel = route as? TopLevelRoute {
                    self.appCoordinator.activateTab(for: topLevel)
                } else {
                    self.coordinator.push(route)
                }
            },
            onActivate: { route in self.appCoordinator.activateTab(for: route) }
        )
    }

    func updateUIViewController(_ uiViewController: UIViewController, context: Context) {
    }
}

At the tab level, a NavigationStack uses the Compose tab content as its root and renders detail screens as destinations.

Note that .navigationTitle(title) must be set on the tab root even when .navigationBarHidden(true) is also applied. iOS 26 reads this value to label the tab in the floating tab bar, and if it's missing, the label will be blank.

@available(iOS 26.0, *)
struct TabContentView: View {
    let topLevelRoute: TopLevelRoute
    let coordinator: TabNavigationCoordinator
    let appCoordinator: AppNavigationCoordinator
    let title: String

    var body: some View {
        NavigationStack(path: Binding(
            get: { coordinator.path },
            set: { coordinator.path = $0 }
        )) {
            NativeNavComposeView(
                topLevelRoute: topLevelRoute,
                coordinator: coordinator,
                appCoordinator: appCoordinator
            )
                .ignoresSafeArea(.all)
                .navigationTitle(title)
                .navigationBarHidden(true)
                .navigationDestination(for: RouteWrapper.self) { wrapper in
                    DetailComposeView(
                        route: wrapper.route,
                        coordinator: coordinator,
                        appCoordinator: appCoordinator
                    )
                        .ignoresSafeArea(.all)
                        .navigationTitle(wrapper.route.title ?? "")
                        .navigationSubtitle(wrapper.route.subtitle ?? "")
                        .toolbarTitleDisplayMode(.inline)
                }
        }
    }
}

Build the tab bar

The top-level container is a TabView with one Tab for each top-level route. The .tabBarMinimizeBehavior(.automatic) modifier makes the tab bar float and minimize on scroll. Without it, the tab bar stays fixed at the bottom. The .tint(Color(.accent)) modifier applies the app's accent color to selected tabs.

@available(iOS 26.0, *)
struct NativeNavContentView: View {
    @State private var appCoordinator = AppNavigationCoordinator()

    var body: some View {
        TabView(selection: Binding(
            get: { appCoordinator.selectedTab },
            set: { appCoordinator.selectedTab = $0 }
        )) {
            Tab(String(localized: "Schedule"), systemImage: "clock",
                value: AppNavigationCoordinator.AppTab.schedule) {
                TabContentView(topLevelRoute: ScheduleScreen(),
                               coordinator: appCoordinator.scheduleCoordinator,
                               appCoordinator: appCoordinator, title: String(localized: "Schedule"))
            }
            Tab(String(localized: "Info"), systemImage: "info.circle",
                value: AppNavigationCoordinator.AppTab.info) {
                TabContentView(topLevelRoute: InfoScreen(),
                               coordinator: appCoordinator.infoCoordinator,
                               appCoordinator: appCoordinator, title: String(localized: "Info"))
            }
        }
        .tabBarMinimizeBehavior(.automatic)
        .tint(Color(.accent))
    }
}

Color(.accent) resolves to the AccentColor asset in your Xcode project's asset catalog. You can define it either through Xcode's asset catalog editor (see Specifying your app's color scheme) or by creating Assets.xcassets/AccentColor.colorset/Contents.json. For the JSON option, you can use Contents.json from the sample project as a starting point and replace the component values with your own colors.

With two tabs, the app renders as follows:

The translucency, depth, and floating tab bar are all applied by iOS 26 — no additional styling code is needed.

Fall back on older iOS versions

Liquid Glass and the new TabView APIs are iOS 26 only. On older versions, the app falls back to the previous Compose-driven setup. ComposeView is the SwiftUI wrapper around the no-callback MainViewController overload:

struct ContentView: View {
    var body: some View {
        if #available(iOS 26.0, *) {
            NativeNavContentView()
        } else {
            ComposeView(topLevelRoute: ScheduleScreen())
                .ignoresSafeArea(.all)
        }
    }
}

See the complete file: ContentView.swift.

Alternative approaches

The migration in this tutorial favors native SwiftUI navigation, which gives you Liquid Glass and other system behaviors out of the box. If this approach doesn't fit your project, consider one of these alternatives:

Compose-driven navigation with native interop controls. Keep navigation in Compose, but embed native UI controls such as UITabBar and UINavigationBar, including Liquid Glass styling. The trade-off is some interop limitations between native overlays and Compose content.
Compose-only navigation with imitated Liquid Glass effects. Render everything in Compose and approximate Liquid Glass visually, for example, with libraries like AndroidLiquidGlass, Calf, or Liquid. This approach keeps all UI on the Compose side, with the effect visually similar although not identical to system Liquid Glass.

What's next

Check out the Official KotlinConf application with the Liquid Glass effect applied.
See Adopting Liquid Glass, Apple's overview of the new material and adoption checklist.
Refer to Integration with the SwiftUI framework for the official guidance on using Compose Multiplatform inside SwiftUI and embedding SwiftUI inside a Compose Multiplatform app.

19 May 2026

Kotlin Multiplatform Help

Liquid Glass in a Compose Multiplatform app

Migration plan

Add title metadata to routes

Add navigation callbacks to the iOS entry point

Intercept navigation at the Compose level

Build a standalone screen renderer for iOS

Add a flat screen renderer

Signal to Compose that SwiftUI owns navigation

Wrap the renderer for iOS

Apply the flag to tab roots

Hide Compose's built-in navigation UI

Expose new iOS entry points

Build the SwiftUI navigation layer

Make Kotlin routes usable in `NavigationStack`

Track tab and navigation state

Embed Compose screens as SwiftUI views

Set up navigation within each tab

Build the tab bar

Fall back on older iOS versions

Alternative approaches

What's next

Liquid Glass in a Compose Multiplatform app

Migration plan

Add title metadata to routes

Add navigation callbacks to the iOS entry point

Intercept navigation at the Compose level

Build a standalone screen renderer for iOS

Add a flat screen renderer

Signal to Compose that SwiftUI owns navigation

Wrap the renderer for iOS

Apply the flag to tab roots

Hide Compose's built-in navigation UI

Expose new iOS entry points

Build the SwiftUI navigation layer

Make Kotlin routes usable in NavigationStack

Track tab and navigation state

Embed Compose screens as SwiftUI views

Set up navigation within each tab

Build the tab bar

Fall back on older iOS versions

Alternative approaches

What's next

Make Kotlin routes usable in `NavigationStack`
