Build a Kotlin app that uses Spring AI to answer questions based on documents stored in Qdrant — tutorial

Before you start

1. Download and install the latest version of IntelliJ IDEA Ultimate Edition.

2. Create an OpenAI API key on the OpenAI platform to access the API.

3. Install Docker to run the Qdrant vector database locally.

4. After installing Docker, open your terminal and run the following command to start the container:

   docker run -p 6333:6333 -p 6334:6334 qdrant/qdrant

Create the project

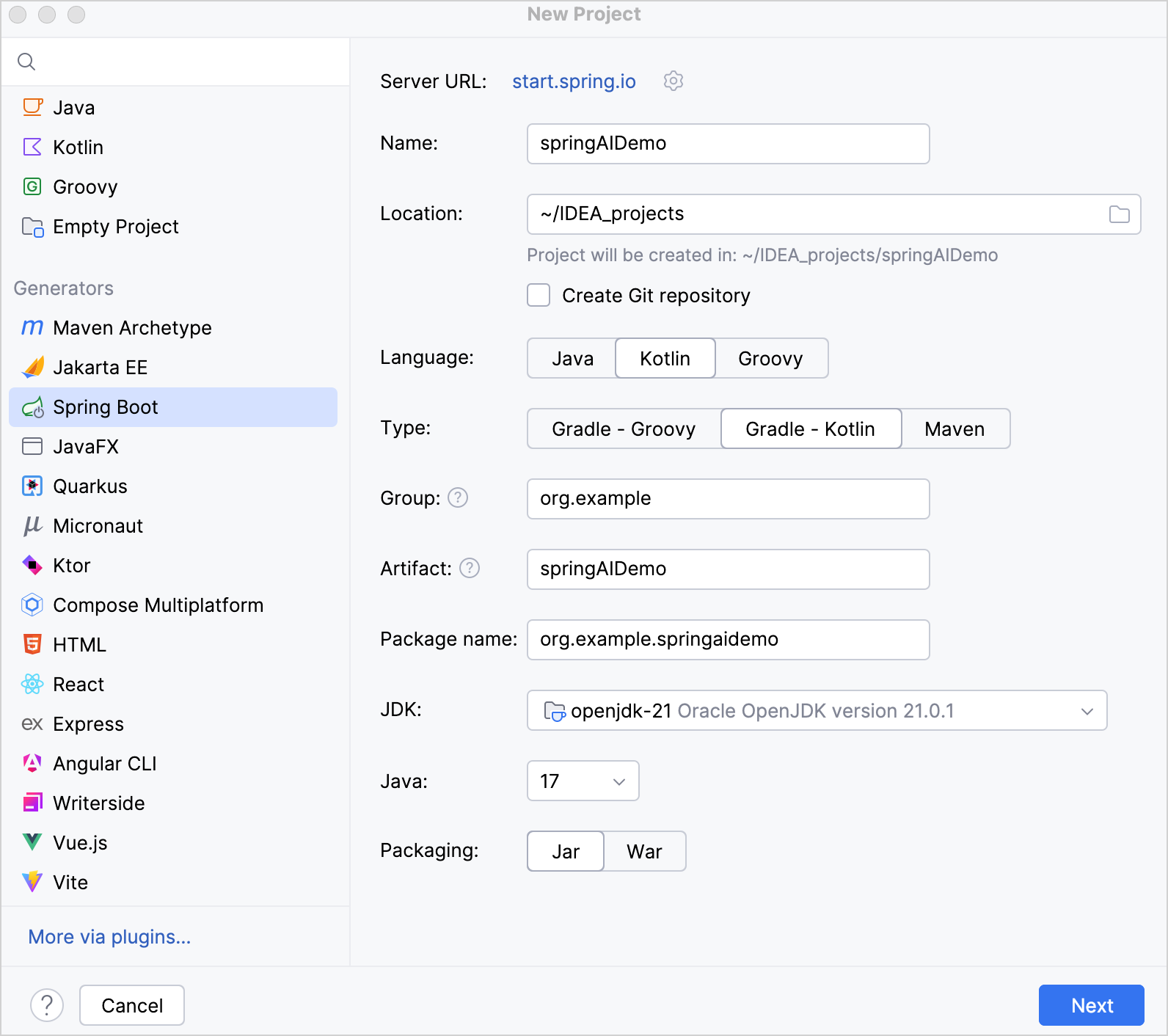

Create a new Spring Boot project in IntelliJ IDEA Ultimate Edition:

1. In IntelliJ IDEA, select File | New | Project.

2. In the panel on the left, select New Project | Spring Boot.

3. Specify the following fields and options in the New Project window:

   • Name: springAIDemo

   • Language: Kotlin

   • Type: Gradle - Kotlin

   • Package name: com.example.springaidemo

   • JDK: Java JDK

   • Java: 17



4. Make sure that you have specified all the fields and click Next.

5. Select the latest stable Spring Boot version in the Spring Boot field.

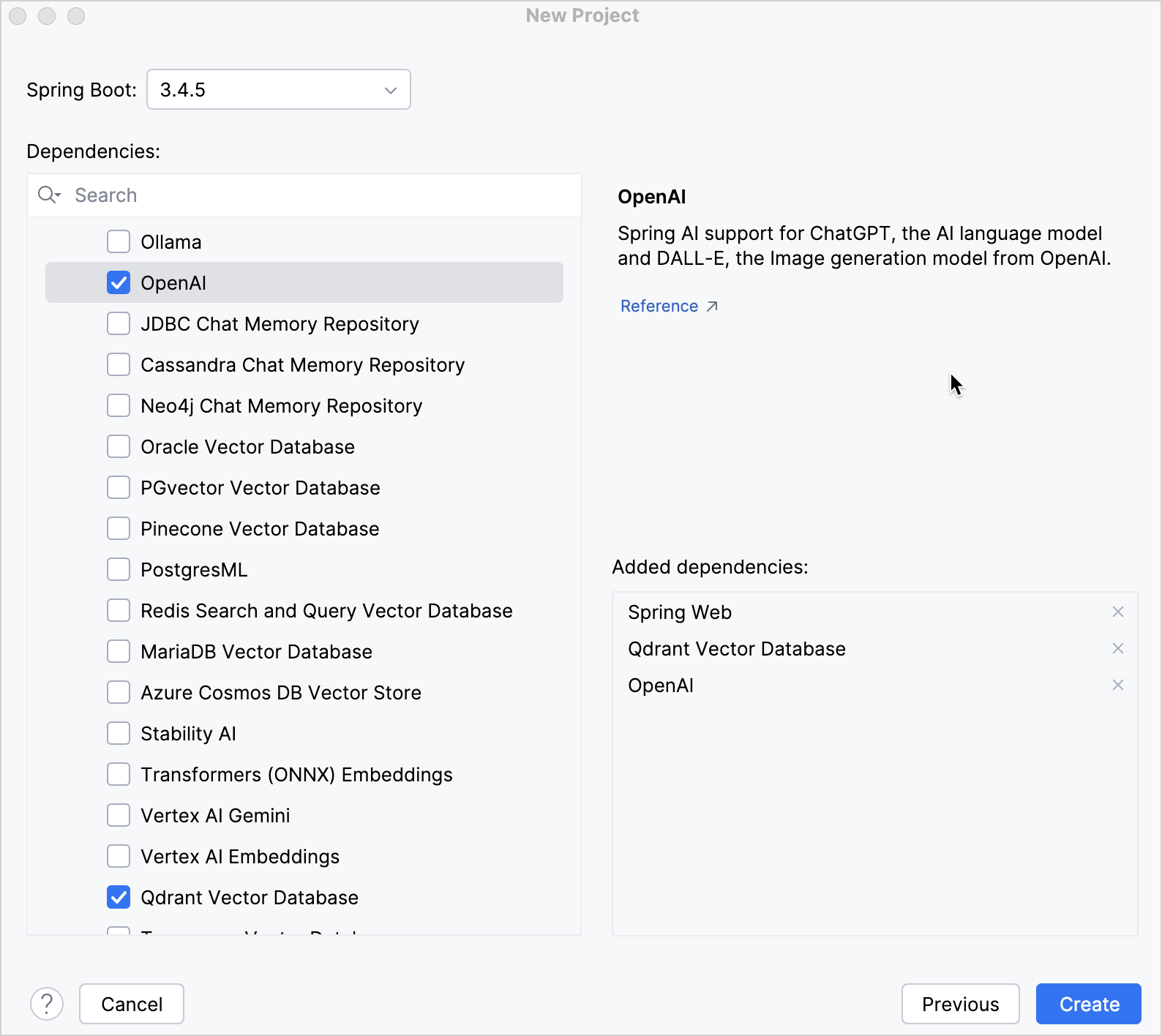

6. Select the following dependencies required for this tutorial:

   • Web | Spring Web

   • AI | OpenAI

   • SQL | Qdrant Vector Database



7. Click Create to generate and set up the project.

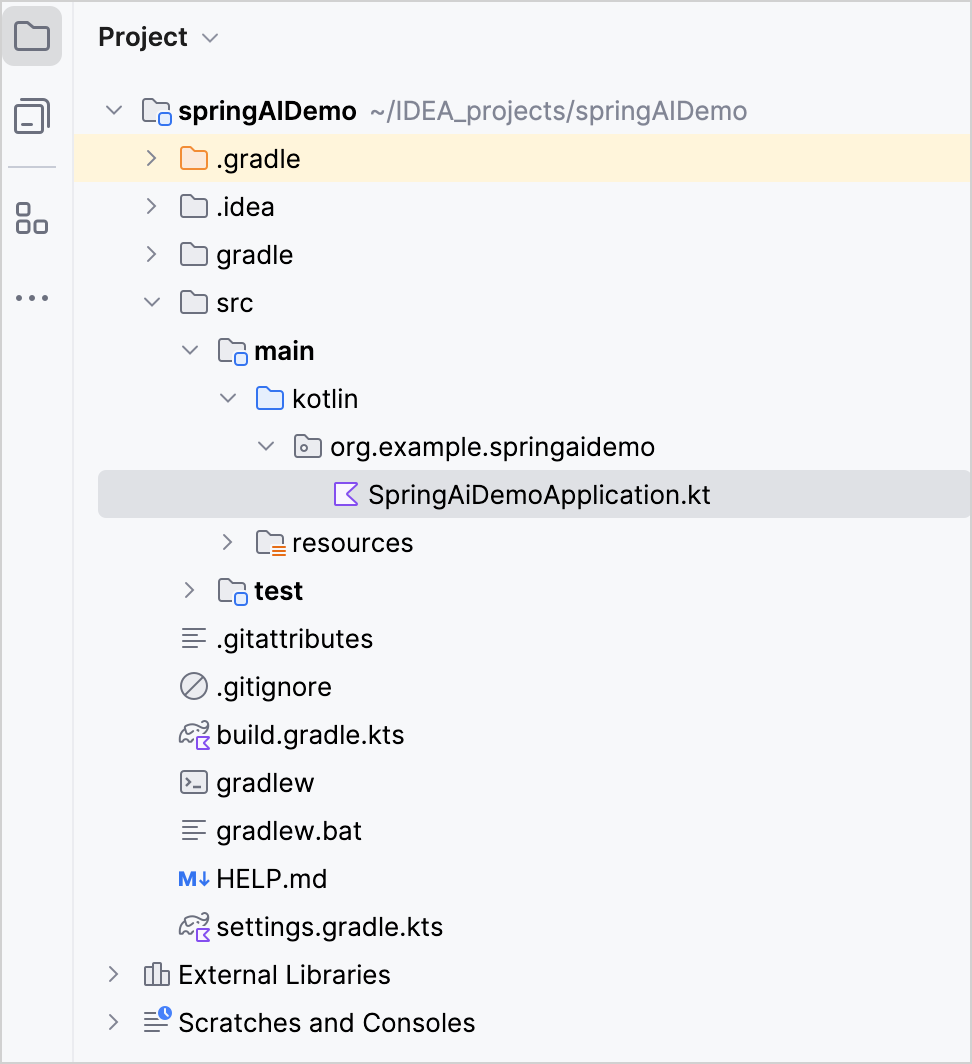

After this, you can see the following structure in the Project view:

The generated Gradle project corresponds to the Maven's standard directory layout:

• There are packages and classes under the main/kotlin folder that belong to the application.

• The entry point to the application is the main() method of the SpringAiDemoApplication.kt file.

Update the project configuration

1. Update your build.gradle.kts Gradle build file with the following:

   plugins { kotlin("jvm") version "2.1.21" kotlin("plugin.spring") version "2.1.21" // Rest of the plugins }

2. Update your springAiVersion to 1.0.0-M6:

   extra["springAiVersion"] = "1.0.0-M6"

3. Click the Sync Gradle Changes button to synchronize the Gradle files.

4. Update your src/main/resources/application.properties file with the following:

   # OpenAI spring.ai.openai.api-key=YOUR_OPENAI_API_KEY spring.ai.openai.chat.options.model=gpt-4o-mini spring.ai.openai.embedding.options.model=text-embedding-ada-002 # Qdrant spring.ai.vectorstore.qdrant.host=localhost spring.ai.vectorstore.qdrant.port=6334 spring.ai.vectorstore.qdrant.collection-name=kotlinDocs spring.ai.vectorstore.qdrant.initialize-schema=true

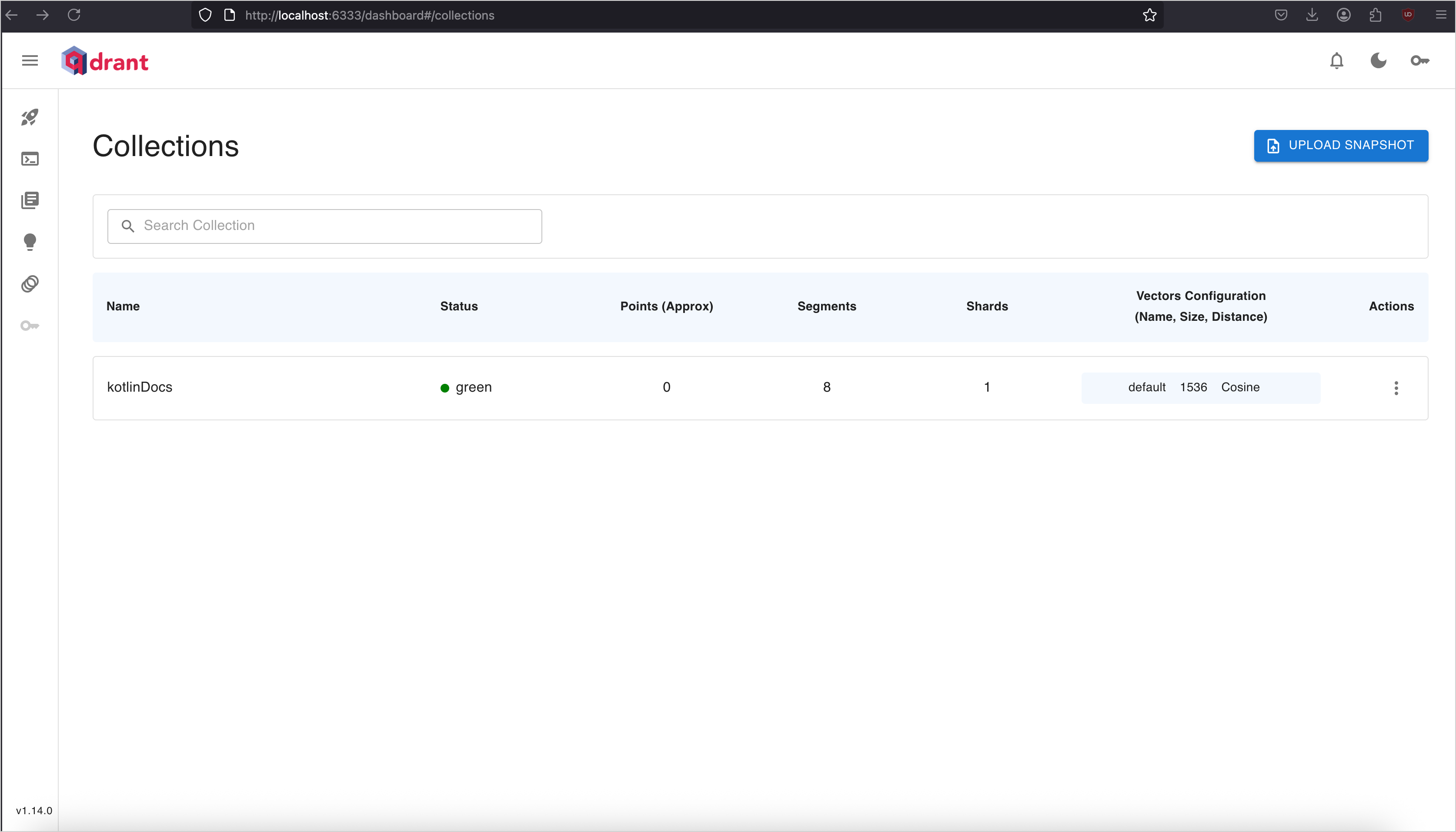

5. Run the SpringAiDemoApplication.kt file to start the Spring Boot application. Once it's running, open the Qdrant collections page in your browser to see the result:



Create a controller to load and search documents

Create a Spring @RestController to search documents and store them in the Qdrant collection:

1. In the src/main/kotlin/org/example/springaidemo directory, create a new file named KotlinSTDController.kt, and add the following code:

   package org.example.springaidemo // Imports the required Spring and utility classes import org.slf4j.LoggerFactory import org.springframework.ai.document.Document import org.springframework.ai.vectorstore.SearchRequest import org.springframework.ai.vectorstore.VectorStore import org.springframework.web.bind.annotation.GetMapping import org.springframework.web.bind.annotation.PostMapping import org.springframework.web.bind.annotation.RequestMapping import org.springframework.web.bind.annotation.RequestParam import org.springframework.web.bind.annotation.RestController import org.springframework.web.client.RestTemplate import kotlin.uuid.ExperimentalUuidApi import kotlin.uuid.Uuid // Data class representing the chat request payload data class ChatRequest(val query: String, val topK: Int = 3) @RestController @RequestMapping("/kotlin") class KotlinSTDController( private val restTemplate: RestTemplate, private val vectorStore: VectorStore, ) { private val logger = LoggerFactory.getLogger(this::class.java) @OptIn(ExperimentalUuidApi::class) @PostMapping("/load-docs") fun load() { // Loads a list of documents from the Kotlin documentation val kotlinStdTopics = listOf( "collections-overview", "constructing-collections", "iterators", "ranges", "sequences", "collection-operations", "collection-transformations", "collection-filtering", "collection-plus-minus", "collection-grouping", "collection-parts", "collection-elements", "collection-ordering", "collection-aggregate", "collection-write", "list-operations", "set-operations", "map-operations", "read-standard-input", "opt-in-requirements", "scope-functions", "time-measurement", ) // Base URL for the documents val url = "https://raw.githubusercontent.com/JetBrains/kotlin-web-site/refs/heads/master/docs/topics/" // Retrieves each document from the URL and adds it to the vector store kotlinStdTopics.forEach { topic -> val data = restTemplate.getForObject("$url$topic.md", String::class.java) data?.let { it -> val doc = Document.builder() // Builds a document with a random UUID .id(Uuid.random().toString()) .text(it) .metadata("topic", topic) .build() vectorStore.add(listOf(doc)) logger.info("Document $topic loaded.") } ?: logger.warn("Failed to load document for topic: $topic") } } @GetMapping("docs") fun query( @RequestParam query: String = "operations, filtering, and transformations", @RequestParam topK: Int = 2 ): List<Document>? { val searchRequest = SearchRequest.builder() .query(query) .topK(topK) .build() val results = vectorStore.similaritySearch(searchRequest) logger.info("Found ${results?.size ?: 0} documents for query: '$query'") return results } }

2. Update the SpringAiDemoApplication.kt file to declare a RestTemplate bean:

   package org.example.springaidemo import org.springframework.boot.autoconfigure.SpringBootApplication import org.springframework.boot.runApplication import org.springframework.context.annotation.Bean import org.springframework.web.client.RestTemplate @SpringBootApplication class SpringAiDemoApplication { @Bean fun restTemplate(): RestTemplate = RestTemplate() } fun main(args: Array<String>) { runApplication<SpringAiDemoApplication>(*args) }

3. Run the application.

4. In the terminal, send a POST request to the /kotlin/load-docs endpoint to load the documents:

   curl -X POST http://localhost:8080/kotlin/load-docs

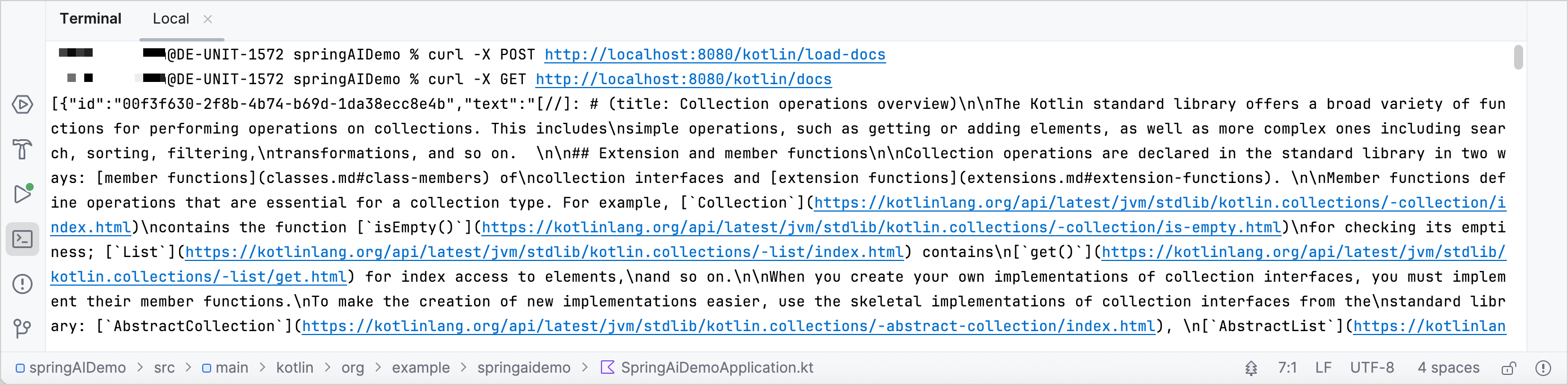

5. Once the documents are loaded, you can search for them with a GET request:

   curl -X GET http://localhost:8080/kotlin/docs



Implement an AI chat endpoint

Once the documents are loaded, the final step is to add an endpoint that answers questions using the documents in Qdrant through Spring AI's Retrieval-Augmented Generation (RAG) support:

1. Open the KotlinSTDController.kt file, and import the following classes:

   import org.springframework.ai.chat.client.ChatClient import org.springframework.ai.chat.client.advisor.RetrievalAugmentationAdvisor import org.springframework.ai.chat.client.advisor.SimpleLoggerAdvisor import org.springframework.ai.chat.prompt.Prompt import org.springframework.ai.chat.prompt.PromptTemplate import org.springframework.ai.rag.preretrieval.query.transformation.RewriteQueryTransformer import org.springframework.ai.rag.retrieval.search.VectorStoreDocumentRetriever import org.springframework.web.bind.annotation.RequestBody

2. Add ChatClient.Builder to the controller's constructor parameters:

   class KotlinSTDController( private val chatClientBuilder: ChatClient.Builder, private val restTemplate: RestTemplate, private val vectorStore: VectorStore, )

3. Inside the controller class, create a ChatClient instance and a query transformer:

   // Builds the chat client with a simple logging advisor private val chatClient = chatClientBuilder.defaultAdvisors(SimpleLoggerAdvisor()).build() // Builds the query transformer used to rewrite the input query private val rqtBuilder = RewriteQueryTransformer.builder().chatClientBuilder(chatClientBuilder)

4. At the bottom of your KotlinSTDController.kt file, add a new chatAsk() endpoint, with the following logic:

   @PostMapping("/chat/ask") fun chatAsk(@RequestBody request: ChatRequest): String? { // Defines the prompt template with placeholders val promptTemplate = PromptTemplate( """ {query}. Please provide a concise answer based on the {target} documentation. """.trimIndent() ) // Creates the prompt by substituting placeholders with actual values val prompt: Prompt = promptTemplate.create(mapOf("query" to request.query, "target" to "Kotlin standard library")) // Configures the retrieval advisor to augment the query with relevant documents val retrievalAdvisor = RetrievalAugmentationAdvisor.builder() .documentRetriever( VectorStoreDocumentRetriever.builder() .similarityThreshold(0.7) .topK(request.topK) .vectorStore(vectorStore) .build() ) .queryTransformers(rqtBuilder.promptTemplate(promptTemplate).build()) .build() // Sends the prompt to the LLM with the retrieval advisor and get the response val response = chatClient.prompt(prompt) .advisors(retrievalAdvisor) .call() .content() logger.info("Chat response generated for query: '${request.query}'") return response }

5. Run the application.

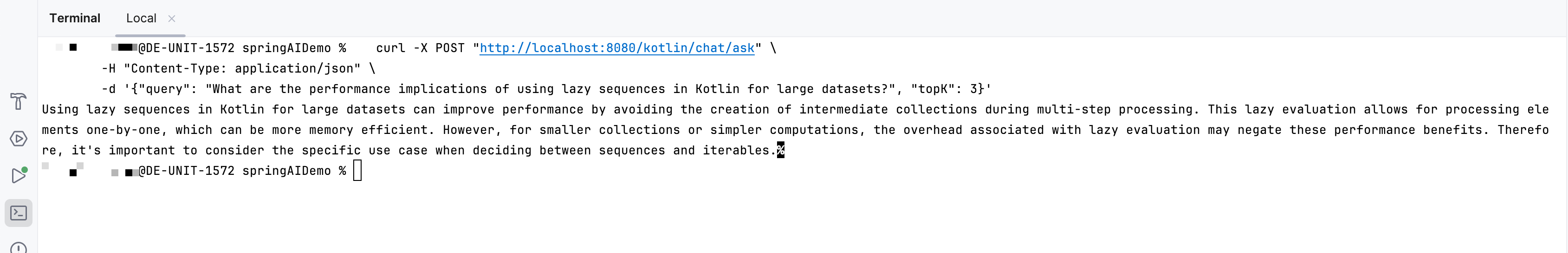

6. In the terminal, send a POST request to the new endpoint to see the results:

   curl -X POST "http://localhost:8080/kotlin/chat/ask" \ -H "Content-Type: application/json" \ -d '{"query": "What are the performance implications of using lazy sequences in Kotlin for large datasets?", "topK": 3}'



Congratulations! You now have a Kotlin app that connects to OpenAI and answers questions using context retrieved from documentation stored in Qdrant. Try experimenting with different queries or importing other documents to explore more possibilities.

You can view the completed project in the Spring AI demo GitHub repository, or explore other Spring AI examples in Kotlin AI Examples.
