Update the user interface

Update the Android part

The composeApp module contains an Android application, defines its main activity and the UI views, and uses the shared module as a regular Android library. The UI of the application uses the Compose Multiplatform framework.

Make some changes and see how they are reflected in the UI:

1. Navigate to the App.kt file in the composeApp/src/androidMain/.../greetingkmp directory.

2. Find the Greeting class invocation. Select the greet() function, right-click it, and select Go To | Declaration or Usages. You'll see that it's the same class from the shared module you edited in the previous step.

3. In the Greeting.kt file, update the Greeting class so that the greet() function returns a list of strings:

   class Greeting { private val platform: Platform = getPlatform() fun greet(): List<String> = buildList { add(if (Random.nextBoolean()) "Hi!" else "Hello!") add("Guess what this is! > ${platform.name.reversed()}!") } }

4. Go back to the App.kt file and update the App() implementation:

   @Composable @Preview fun App() { MaterialTheme { val greeting = remember { Greeting().greet() } Column( modifier = Modifier .padding(all = 10.dp) .safeContentPadding() .fillMaxSize(), verticalArrangement = Arrangement.spacedBy(8.dp), ) { greeting.forEach { greeting -> Text(greeting) HorizontalDivider() } } } }

   Here the Column composable shows each of the Text items, adding padding around them and space between them.

5. Follow IntelliJ IDEA's suggestions to import the missing dependencies.

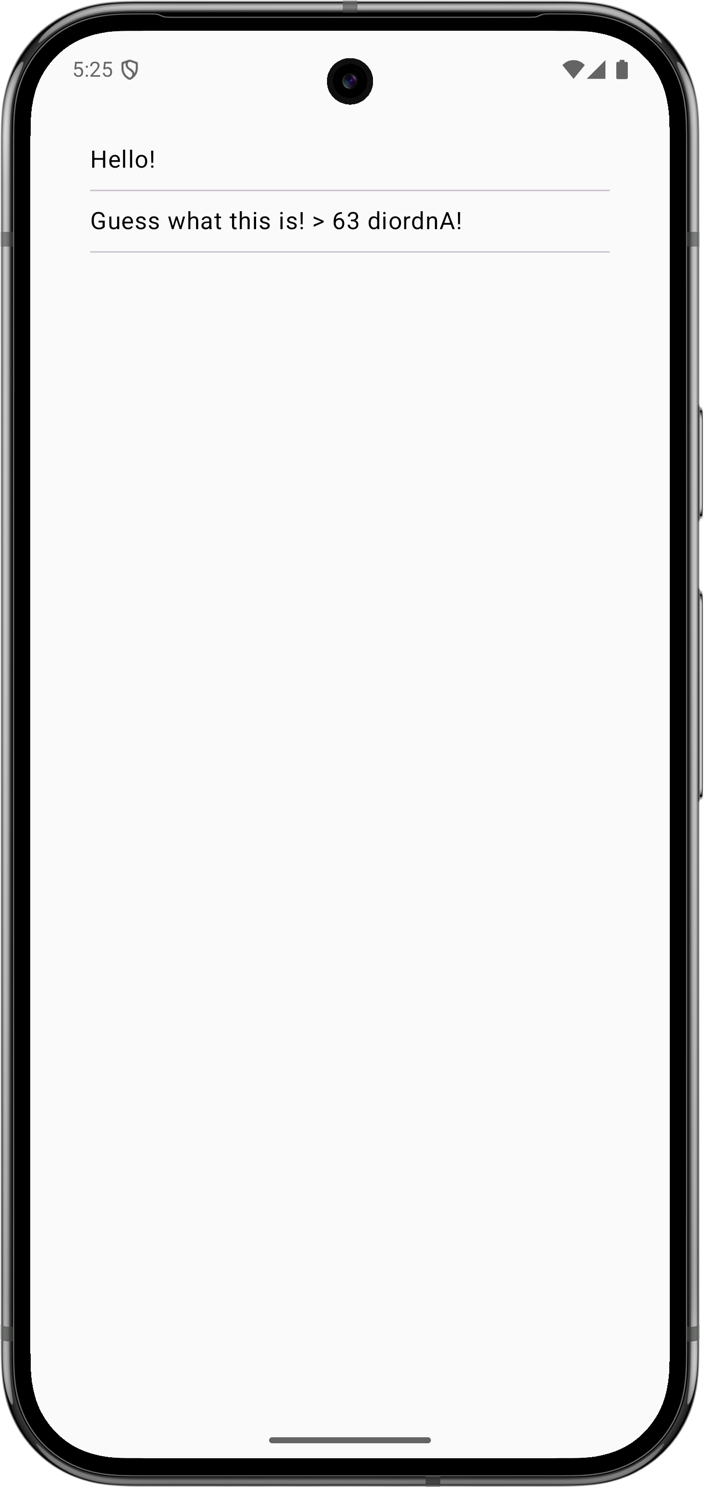

6. Now you can run the Android app to see how it displays the list of strings:



Work with the iOS module

The iosApp directory builds into an iOS application. It depends on and uses the shared module as an iOS framework. The UI of the app is written in Swift.

Implement the same changes as in the Android app:

1. In IntelliJ IDEA, find the iosApp/iosApp folder at the root of your project in the Project tool window.

2. Open the iosApp/ContentView.swift file, right-click the Greeting().greet() call, and select Go To | Definition.

   You'll see the Objective-C declarations for the Kotlin functions defined in the shared module. Kotlin types are represented as Objective-C types when used from Objective-C/Swift. Here the greet() function returns List<String> in Kotlin and is seen from Swift as returning NSArray<NSString>. For more on type mappings, see Interoperability with Swift/Objective-C.

3. Update the SwiftUI code to display a list of items in the same way as in the Android app:

   struct ContentView: View { let phrases = Greeting().greet() var body: some View { List(phrases, id: \.self) { Text($0) } } }

   • The results of the greet() call are stored in the phrases variable (let in Swift is similar to Kotlin's val).

   • The List function produces a list of Text items.

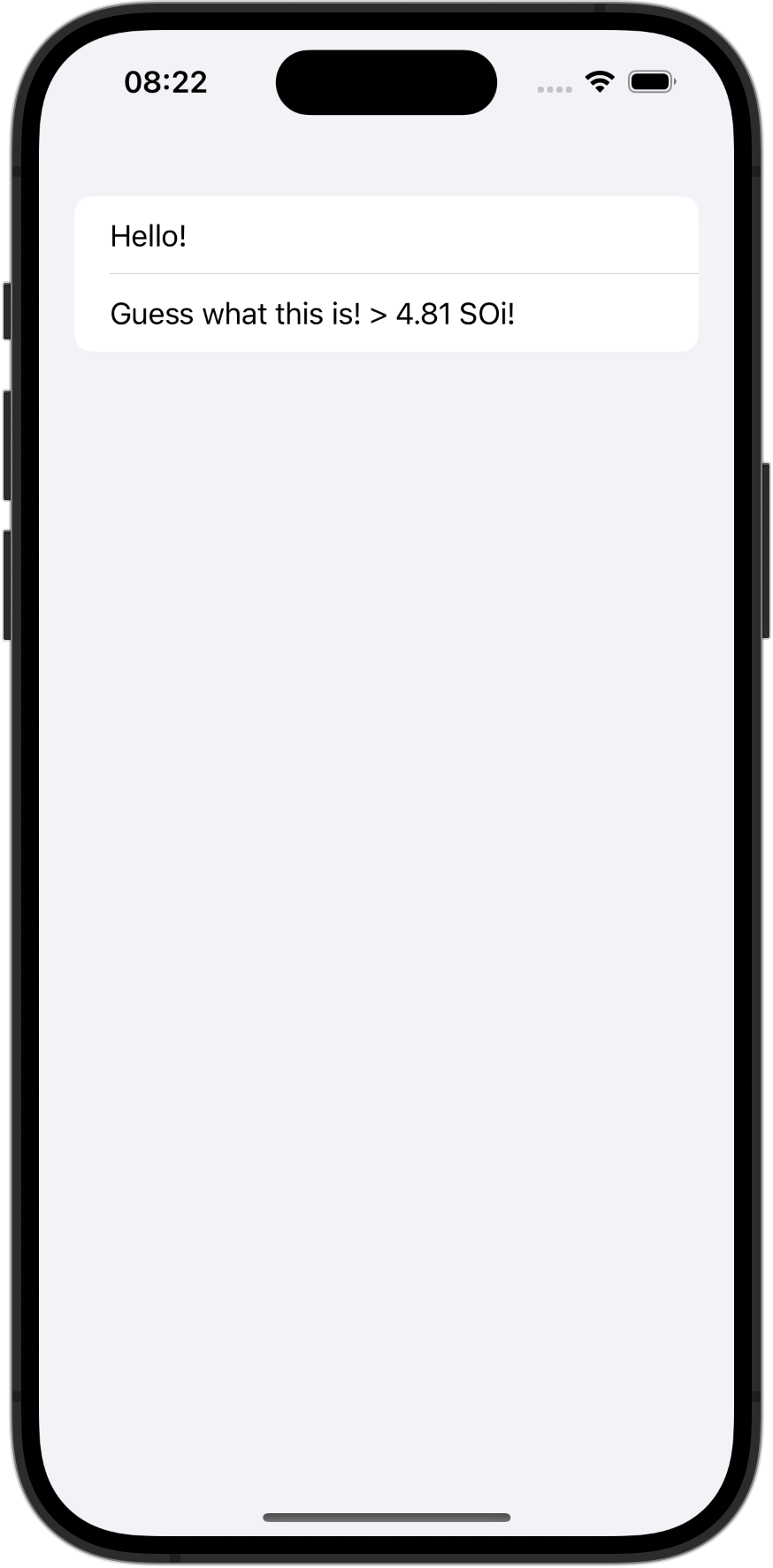

4. Start the iOS run configuration to see the changes:



Possible issues and solutions

Next step

In the next part of the tutorial, you'll learn about dependencies and add a third-party library to expand the functionality of your project.

Proceed to the next part
